Marine Autotrophic Carbon Fixation

medical illustration of As atmospheric carbon dioxide concentrations have climbed in recent decades, carbon storage on land has increased, too. Where is it all going? NOAA-funded research indicates that semi-arid ecosystems are setting the trend in carbon storage, but their ability to keep taking up carbon is tied to climate, in particular El Niño and La Niña. Keywords: infographic, data visualization, graph, icons, typography, vector, trees, forest, corn, cactus, ecology, global warming, CO2, temperature, earth
Next medical illustration of Infographic comparing historical and recent snowpacks. Snowpacks sustain key natural resources, including salmon runs, sequoias, and the winter sports industry. Sierra snowmelt provides drinking and agricultural water in California. Reduced snowpacks raise wildfire risk. Keywords: vector, data visualization, map, graph, topography, typography, numbers, icons, mountain, snow, climate, climate change, global warming, outdoor, recreation, skiing, snowboarding, alpine, drought

Dwindling Snowpacks in the Sierra Nevada

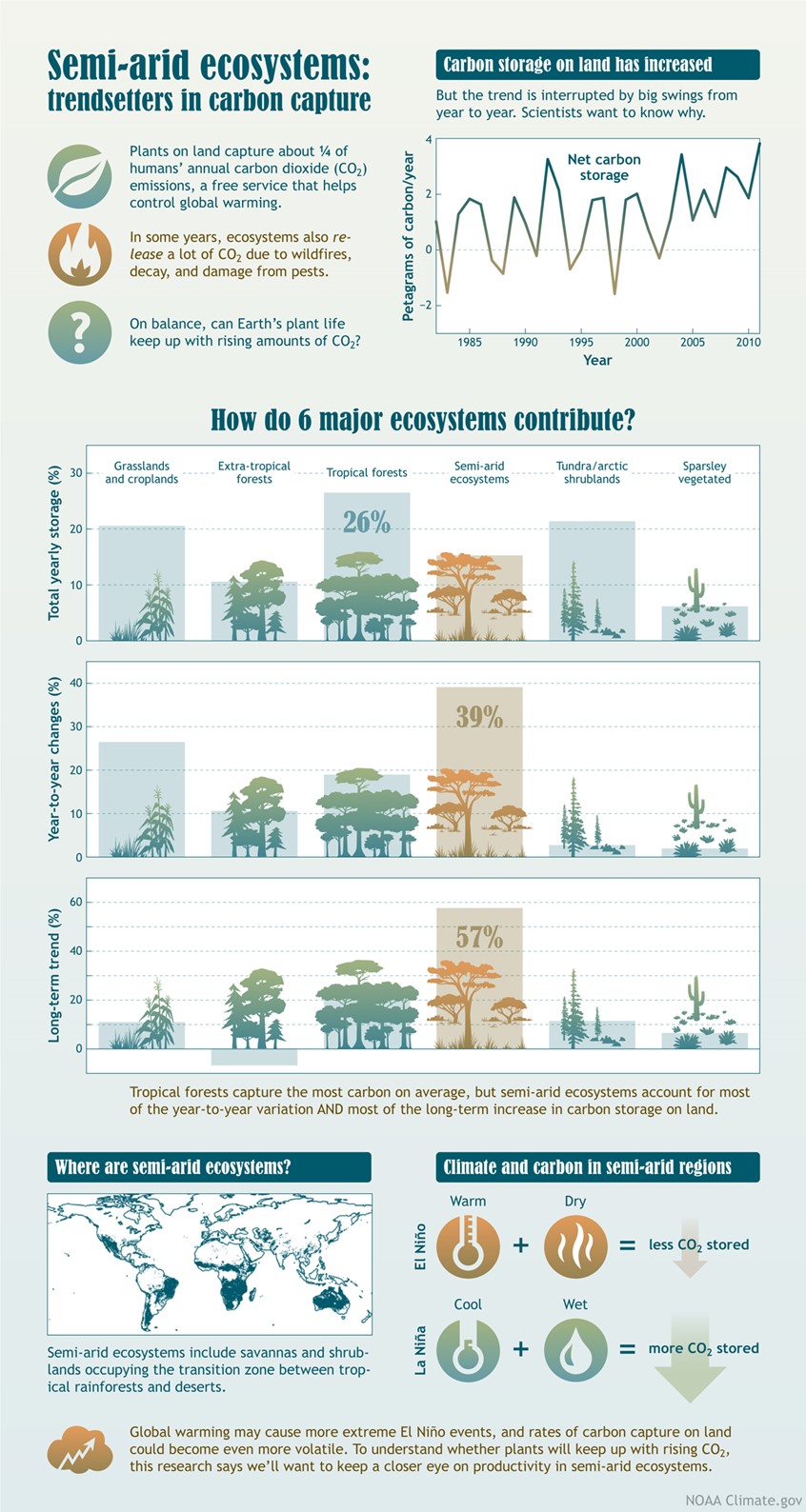

As atmospheric carbon dioxide concentrations have climbed in recent decades, carbon storage on land has increased, too. Where is it all going? NOAA-funded research indicates that semi-arid ecosystems are setting the trend in carbon storage, but their ability to keep taking up carbon is tied to climate, in particular El Niño and La Niña. Keywords: infographic, data visualization, graph, icons, typography, vector, trees, forest, corn, cactus, ecology, global warming, CO2, temperature, earth
